Niobium C-103 Alloy – Composition, Properties & Applications in High-Temperature Aerospace

Niobium C-103 is a high-temperature, refractory alloy designed for extreme aerospace and propulsion applications. It is a niobium-based alloy (~86–89% Nb) alloyed chiefly with 10% hafnium and 1% titanium (and minor zirconium). C-103 offers exceptionally high strength and ductility at elevated temperatures while remaining relatively lightweight (density ~8.85 g/cm³). With a melting point around 2350 °C
and good thermal conductivity (~40–45 W/m·K at 800–1300 °C), it can withstand service temperatures above 2000 °C that far exceed the limits of most nickel- or titanium-based alloys. In practical use, C-103’s limited oxidation resistance (it oxidizes rapidly above ~250 °C) is mitigated by protective coatings (e.g. fused silica or silicide layers) and by incorporating coolant flow in rocket designs.

C-103’s unique combination of low density, high strength-to-weight ratio, and high-temperature creep resistance (with a creep-activation energy ≈374 kJ/mol) has made it a material of choice for rocket engine nozzles, thrusters, combustion chambers, and other space and hypersonic hardware. Historically developed in the 1960s for the Apollo program, it remains in use in modern space propulsion and hypersonics. This report provides a comprehensive technical overview of C-103, covering its composition, mechanical and physical properties, corrosion/oxidation behavior, fabrication methods, product forms, applications and case studies, specifications, and supply-chain considerations, with citations to primary sources and standards throughout.

Introduction: Background and Overview

Niobium C-103 (also called C103, Nb‑10Hf‑1Ti, or UNS R04295) is a refractory alloy developed for aerospace propulsion systems requiring extreme thermal stability and high ductility. First introduced in the 1960s, it was initially used in the Apollo Lunar Module’s rocket nozzle. One of the largest C-103 components built was the “nozzle extension” amplifiers on Apollo rocket engines, made from welded C-103 sheet and tubes. Since then, C-103 (and related Nb-alloys) have seen broad use in rocket thrust chambers, attitude-control thrusters, satellite propulsion hardware, hypersonic leading edges, and even jet-engine afterburner flaps. Its appeal comes from combining the low density of niobium (≈8.85 g/cm³) with significant improvements in high-temperature strength thanks to hafnium and titanium. This allows much lighter parts than those made from heavier refractory metals (like tungsten or rhenium) at comparable temperatures.

C-103’s development history reflects the evolution of space propulsion: as liquid-fueled engines demanded lighter and hotter materials, metallurgists enhanced niobium (Nb) with Hf and Ti. Hafnium (Hf) raises the melting point and high-temperature strength, while titanium (Ti) improves creep resistance and weldability. The resulting alloy, roughly 89% Nb with 10% Hf and 1% Ti, retains niobium’s excellent ductility (elongation ≥20%) and very low ductile-to-brittle transition temperature (around –150 °C). C-103 remains relatively soft at room temperature and is easy to form or machine (unlike many other refractory alloys).

Chemical Composition

C-103’s nominal composition is approximately Nb–10Hf–1Ti–0.7Zr–0.5Ta–0.5W (all wt%). Key alloying ranges (min–max) are:

Element	Composition
Niobium (Nb)	Balance (~86–89%)
Hafnium (Hf)	9.0 – 11.0%
Titanium (Ti)	0.7 – 1.3%
Zirconium (Zr)	~0.7% (trace)
Tungsten (W)	≤ 0.5%
Tantalum (Ta)	≤ 0.5%
Carbon (C)	≤ 0.015%
Oxygen (O)	≤ 0.025%
Nitrogen (N)	≤ 0.010%
Hydrogen (H)	≤ 0.0015%

This yields roughly 89% Nb, 10% Hf, 1% Ti, with Zr/Ta/W each well below 1%. Trace zirconium is often added to grain-refine the structure, and Ti/Hf provides solid-solution strengthening. The exact “typical” composition from sources is ~Nb 89%, Hf 10%, Ti 1%, with minor impurities.

For context, Table 1 below compares C-103 with a few similar refractory alloys (all %wt):

Alloy	Nb	Hf	Ti	Zr	W	Ta	Other / Main Elements
C-103 (Nb–10Hf–1Ti)	~89	~10	~1.0	~0.7	~0.5	~0.5	Nb balance; interstitials (C, N, O) very low
C-129Y (Nb–10W–10Hf–0.1Y)	~80	10	–	–	10	–	+ 0.1%Y (yttrium)
Nb–1Zr	~99	–	–	1	–	–	Niobium balance, 1% Zr; “Nb-1Zr” alloy
Waspaloy (Ni-16Cr-13Co)	–	–	3	–	–	–	Ni balance, ~14% Cr, ~13% Co, 3% Ti, 1% Al, 4% Mo

• C-129 (Nb-10W-10Hf): A Nb alloy with higher Hf and W for even stronger creep resistance.
• Nb–1Zr: Nearly pure Nb (99%) with 1% Zr (often with ~0.1%C) used in nuclear and lamp applications; it has lower high-T strength than C-103.
• Waspaloy: A nickel-based superalloy (UNS N07001) included for comparison; it has Cr, Co, Ti, Al, Mo and operates below ~650 °C
  (far below C-103’s range).

C-103’s 10% Hf content (much higher than pure Nb or Nb-1Zr) distinguishes it. Hafnium, being the primary strengthening element, significantly boosts melt point and creep strength, at the cost of some density (Hf ≈13.3 g/cm³). Zirconium (Zr) is sometimes added around 0.7% to refine grains. Carbon, oxygen and nitrogen are controlled to ≤100–250 ppm, as these interstitials strongly affect ductility (excess O markedly reduces yield strength).

Mechanical Properties

C-103 maintains good strength and ductility up to very high temperatures. Typical mechanical properties (fully recrystallized, annealed condition) are shown in Table 2 (minimum values):

Temperature	Tensile UTS (MPa)	Yield (0.2% offset, MPa)	Elongation (%)	Hardness (approx)
20 °C (Room T)	≥386 (56 ksi)	≥276 (40 ksi)	≥20	~85 HRB (est.)
538 °C (1000 °F)	≥283 (41 ksi)	≥172 (25 ksi)	≥19	–
649 °C (1200 °F)	≥283	≥159	≥15	–
760 °C (1400 °F)	≥283	≥145	≥16	–
871 °C (1600 °F)	≥283	≥131	≥30	–
1093 °C (2000 °F)	≥172 (25 ksi)	≥124	≥30	–
1371 °C (2500 °F)	≥76 (11 ksi)	≥55 (8 ksi)	≥50	–

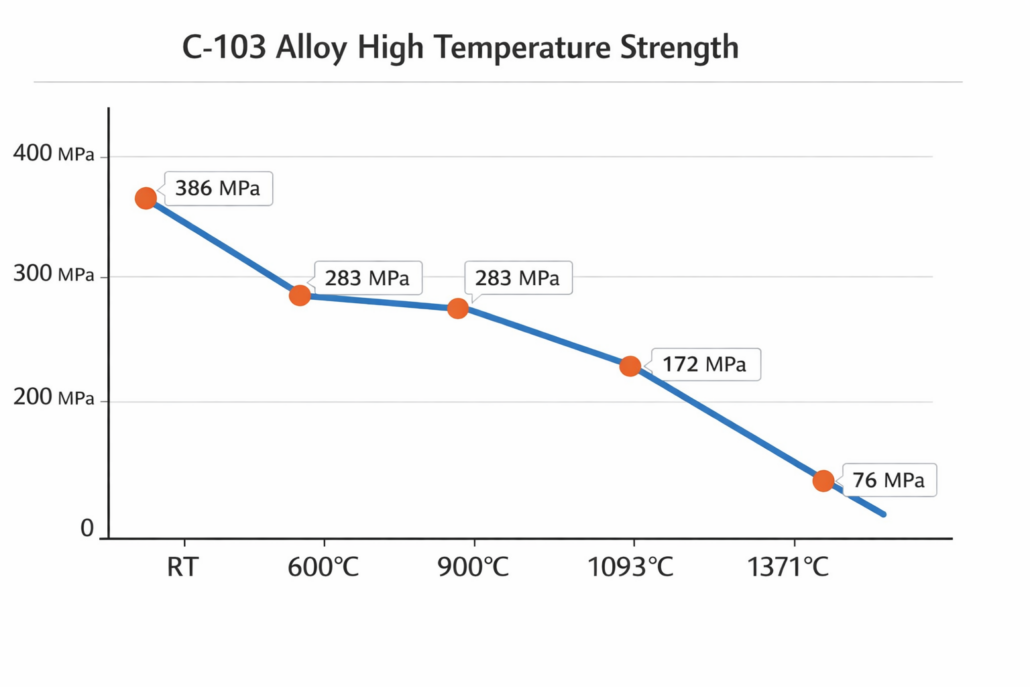

Table 2: Representative tensile and yield strengths and elongations for C-103 Niobium alloy. Elongation is measured in 2 in. (50 mm) gauge. Hardness ~85 HRB at RT (not listed).

At room temperature, C-103 is quite strong for a ductile alloy (UTS ~386 MPa) and cold-worked can be higher. It typically yields ~276 MPa and elongates ≥20%. Notably, even at 1093 °C (2000 °F), its tensile strength is ~172 MPa, and it still exceeds 50% elongation at 1371 °C (2500 °F). Thus, it retains a useful fraction of its strength at temperature: as shown in Figure 1, UTS and yield drop off slowly until ~900 °C and then decline rapidly beyond 1000 °C.

Creep and Fatigue: C-103 demonstrates moderate creep resistance for a refractory solid-solution alloy. NASA tests showed that over 827–1204 °C (1520–2200 °F) and stresses 6.9–138 MPa, only tertiary (accelerating) creep was observed. The creep-strain rate follows an exponential law with a stress exponent ≈2.9 (similar to the cubic law for dislocation creep) and activation energy ~374 kJ/mol. Finer grains creep slightly faster than coarse ones. In practice, at typical rocket engine loads, C-103 can maintain integrity for useful times (hours) at ~1100 °C without deformation. Detailed low-cycle fatigue data are limited, but high elongation suggests good ductility and damage tolerance (i.e. better fatigue than more brittle superalloys).

Hardness: Unworked (annealed) C-103 has a Brinell hardness around ~85 HRB (similar to soft bronze). It can be age-hardened somewhat by cold work, but typical use is in annealed form for maximum ductility. Hardness is generally not a critical spec for C-103 and is often omitted from data sheets.

Physical Properties

Key physical constants for C-103 are listed in Table 3.

Property	Value
Density	8.85–8.87 g/cm³
Melting Point	2350 ±50 °C (4260 ±90 °F)
Thermal Conductivity	~41.9 W/m·K (room T); increases to ~38–45 W/m·K at 811–1300 °C
Coefficient of Thermal Expansion (20–1000 °C)	~8.1×10⁻⁶ /K
Specific Heat (Cp)	~0.34 kJ/kg·K (approx; 0.082 BTU/lb·°F)
Electrical Resistivity	~15×10⁻⁸ Ω·m (20 °C) – see ATI datasheet

Table 3: Selected physical properties of Niobium C-103.

Density & Melting: Niobium alloys are among the lightest refractory materials. At ~8.85 g/cm³, C-103 is much lighter than other high-temperature alloys like tungsten (~19.3 g/cm³). Its melting point (~2350 °C) is somewhat below pure Nb’s (2468 °C) due to the Hf/Ti, but still extremely high.

Thermal Conductivity: C-103 conducts heat well compared to superalloys. At room temperature it is on the order of ~40 W/m·K. Measurements show it remains ~38–45 W/m·K even up to ~1300 °C (rising with temperature), which helps spread heat in hot structures.

Thermal Expansion: The coefficient (~8.1×10⁻⁶/K at 20–100 °C) is modest and fairly linear, similar to stainless steel. This relatively low expansion helps dimensional stability in thermal cycling, though differences remain with other materials (e.g. ceramic coatings).

Other: C-103 has Cp ≈343 J/kg·K at RT (from 0.082 BTU/lb·°F) and modest electrical resistivity (~15×10⁻⁸ Ω·m at 20 °C). These are useful for thermal modeling but rarely critical.

Corrosion and Oxidation Behavior

C-103’s corrosion resistance is typical of refractory niobium alloys: excellent in many environments, but very poor in oxidizing atmospheres at elevated temperature. At room temperature it is highly resistant to most aqueous corrosion (niobium naturally forms a thin, protective oxide layer in air or water). The alloy is rated as having “excellent corrosion resistance” to a variety of acids and salt solutions. However, at high temperature in air or oxygen, C-103 oxidizes aggressively. Unprotected, C-103 “oxidizes easily above about 250 °C, with oxidation rate rising sharply above 500 °C”. It tends to form loose niobium pentoxide scales that spall off, causing material loss and dimensional degradation.

To use C-103 at high temperature, oxidation must be prevented. The standard solution in rocket hardware is a protective coating. Historically, niobium alloys are coated with a fused-silica-based layer (R-512 series) that forms a stable SiO₂ scale. For example, NASA notes that C-103 nozzles are commonly used with R-512A/E fused-silica coatings to allow operation to ~1370 °C without rapid oxidation. Research studies confirm that silicide coatings (e.g. Molybdenum-silicon or Niobium-silicon compounds) on C-103 can markedly improve high-temperature oxidation resistance.

In practice, designers often also rely on engine fuel film-cooling or regenerative cooling to keep exposed metal below critical temperature. In space or vacuum environments (e.g. satellite thrusters), oxidation is not an issue, making C-103 ideal for vacuum-nozzle and thruster applications. Corrosion: C-103 is immune to alkalis and organic solvents, and only susceptible to strong halogen acids or molten salts (similar to pure Nb). Zinc chloride or hydrofluoric acid attack niobium. Overall, its corrosion properties are similar to Nb–1Zr: it has a low electrochemical potential and is very noble in most environments.

Protective Measures: For handling and storage, C-103 should be kept dry to prevent any risk of pyrophoric dust or reaction with strong oxidizers. In service, high-temperature parts must be coated (silicide or ceramic) or used in reducing/coolant environments. Any oxidation that does occur can often be chemically milled away before final assembly.

Fabrication and Processing

C-103 can be processed by conventional refractory metal methods, though it requires vacuum or inert atmospheres due to niobium’s reactivity at high temperatures.

• Melting & Ingot Formation: Typically made by vacuum arc melting or electron-beam melting of Nb, Hf, Ti (and small Zr/Ta) charges. Vacuum conditions ensure high purity. The melt is often cast into ingots for further working.
• Forging and Rolling: C-103 is quite workable for a refractory alloy. As ATI notes, its machining/forming behavior is similar to 316 stainless steel or soft copper. It can be hot-forged or rolled at roughly 1000–1300 °C in vacuum; below ~800 °C, it becomes less ductile. After forging, typical anneals are done around 1000–1200 °C in vacuum or argon. C-103 retains good ductility at room temperature (elongation 20–50% as shown above), so forming operations like bending or drawing rods are straightforward.
• Machining: Machinability is excellent among refractory alloys. Standard carbide or high-speed-steel tooling (sharp edges, positive rake) works well, and finish-machining can use soluble coolant. The ATI datasheet remarks that “tires of fine chips and grinding dust of niobium alloys may burn and sustain combustion,” so coolant is recommended. In practice, cutting speeds are similar to stainless steels. Sections should be cleaned of any oxide film (via light grinding) before welding or brazing.
• Welding and Joining: C-103 welds readily by TIG, EB, and plasma methods. It is easily weldable – for example, Admat notes C-103 can be welded with Tungsten Inert Gas (TIG) without special complications. Weld filler is often the same alloy (C-103 or pure Nb wire). Because Hf tends to segregate at grain boundaries if overheated, weld parameters should be controlled (short arcs, rapid runs). After welding, a moderate anneal (≈1000 °C) may be done to relieve stress. Vacuum brazing with niobium- or molybdenum-base filler can join C-103 to niobium or steel.
• Heat Treatment: Being a solid-solution alloy, C-103 does not age-harden. Solution annealing (1100–1250 °C in vacuum) is the main heat treatment, giving a recrystallized fine-grain microstructure. This restores ductility after working. Unlike superalloys, it has no precipitation-hardening steps. A post-forming anneal is always recommended due to its work-hardening tendencies at low strain.
• Additive Manufacturing: C-103 powder can be used in electron-beam or laser PBF (powder-bed fusion). The alloy’s good weldability and thermal conductivity help in AM. Build platforms of C-103 (as plate) are also used in powder-bed machines due to thermal stability. Challenges include avoiding oxidation of powder and controlling shrinkage during solidification.

Typical Product Forms

C-103 is supplied in standard mill forms and custom parts. Common product types include:

• Sheet and Plate: Rolled or hammer-forged sheet/plate up to ~1″ (25 mm) thick; widths up to 24″ (~610 mm). Alloys often meet ASTM B652 (sheet/plate) specifications.
• Bar and Rod: Forged/rolled rods and bars, round or hex, typically 0.25″–6.50″ diameter (6–165 mm). Grades cover ASTM B655 (rod/bar). Stock lengths to 6 m (20′) or more are available.
• Wire: Drawn wire in small diameters (0.025–0.250″ [0.6–6.3 mm]), often to AMS 7857. Used for soldering or fabricating small thrusters.
• Billet and Bar Slugs: Solid billets (machining stock) up to ~10″ (250 mm) diameter, often in multi-pound sizes.
• Forgings: Heavy forgings (complex shapes) are possible but rare due to cost. Forged blanks up to several inches thick are used for nozzles.
• Powder: Gas- or plasma-atomized C-103 powder (spherical particles) is sold for additive manufacturing (typically AM powders meeting AMS 7852/B652 chemical spec). Typical powder size ~15–45 μm. Powder must be handled under inert gas to avoid ignition.
• Custom Shapes: Complex shapes can be fabricated by machining or forming; e.g. welded nozzle cones from sheet, stamped domes for thrusters, etc.

Table 4 summarizes typical dimensions and tolerances for C-103 mill products (illustrative only):

Product	Size Range (in/cm)	Tolerances
Sheet/Plate	0.010″–1.00″ (0.25–25.4 mm) thickness; up to 24″ (610 mm) width	±0.01″ thickness; ±0.5% linear (plate)
Bar/Rod	0.250″–6.50″ (6.3–165 mm) diameter	±0.005″/in diameter; ±0.5% length
Wire	0.025″–0.250″ (0.6–6.3 mm)	±0.001″ diameter
Powder	15–45 μm (spherical)	±10 µm size distribution

Table 4: Typical mill product forms and dimensions for C-103 alloy (for reference; actual supplier offerings vary).

As noted, C-103 is stocked by several specialty-metal distributors. For example, UPM (O’Neal Performance Metals) offers C-103 build plates and feedstock to AMS 7852/B652 specs. Admat sells C-103 sheets, rods, wire and powder, also noting it meets AMS 7852, 7857, etc. Materion stocks bars, rods, and sheet to ASTM B652/654/655. Typical sheet sizes: 0.024–0.1875″ thick up to 24″ wide; bars up to 6.5″ diameter.

Applications and Case Studies

Aerospace & Propulsion: The predominant use of C-103 is in rocket engines and thrusters. Examples include:

• Rocket Nozzles and Extensions: C-103 has been used for main engine nozzle throats and exit cones on many launch vehicles (Apollo, Titan, modern boosters) because of its weight savings and heat resistance. NASA and industry cite its use in radiatively-cooled nozzles (no coolant needed) for low-thrust rockets.
• Thrusters and RCS: Attitude control thrusters and orbital maneuver engines (especially where vacuum operation is assured) often use C-103 for combustion chamber components. The space environment avoids oxidation, so simple silica coatings suffice. Its ductility also helps endure thermal cycling in these small engines.
• Hypersonic Components: Leading-edge surfaces on hypersonic aircraft (which see short bursts of extremely high heating) use advanced Nb-alloys like C-103 for creep resistance. Wing leading edges and engine inlets at >Mach 5 rely on such materials.
• Afterburner Flap Sections: Jet engines (like the F100 fighter engine) have used coated C-103 plates in afterburner flaps, where parts see ~1000–1300 °C and high vibration. However, widespread jet use is limited by coating durability concerns.

Case Study – Apollo Lunar Module Nozzle: The Apollo LM’s descent engine had a large, radiatively-cooled niobium “bell” extension. According to archival sources, this extension was fabricated from C-103 sheet and tubing, reinforced with beams of C-129Y for stiffness. This example highlights C-103’s use in high-thermal, weight-critical space hardware.

Additional Applications: Beyond propulsion, smaller uses include vacuum furnace hot components, scientific instruments, and nuclear reactors. In cryogenic or high-vacuum systems, Nb’s ductility and low-temperature toughness (DBTT ~–150 °C) are advantageous. Some semiconductor equipment (e.g., sputter targets) has also used niobium alloys due to Nb’s low sputtering yield.

Rationale: In each case, designers choose C-103 when extreme temperature capability and low weight outweigh its material cost. The combination of high T-strength and low density is unique – it sits between refractory metals (like Ta, W) and nickel superalloys (like Waspaloy). The Stanford Advanced Materials comparison emphasizes that C-103 remains useful “above 2000°C” whereas Ni/Ti alloys fall off by 1000–1200°C. Charting a few materials (nickel superalloys, refractory alloys, C-103) shows how C-103 occupies a niche of very high temperature and relatively low density.

Standards, Specifications and Testing Methods

C-103 is covered by both industry and military specifications. Key standards include:

• AMS/ASTM Specifications: AMS 7852 (sheet/plate) and AMS 7857 (rod/wire) for C-103 (Harris/Materion standards). ASTM B652 (sheet/plate), B654 (wire/rod), and B655 (bar/billet) reference C-103 composition and chemistry. The UNS number is R04295. Note that “C-103” itself is a proprietary trade name; ASTM refers to it as “Niobium Alloy C-103”.
• Commercial Data Sheets: Manufacturers provide data sheets (e.g., Materion’s Niobium C-103 Alloy Data Sheet) that specify minimum mechanical properties for given temp ranges. These can be used as acceptance criteria for procured material.
• Testing: Standard metallurgical tests apply. Tensile tests per ASTM E8/E21 at room and elevated temperatures. Hardness (Rockwell B or Vickers) is typically checked on reference coupons, though it’s generally low. Ultrasonic or eddy-current testing may be used for defects in bulk forms. For coatings, ASTM C763 “Standard Practice for Oxyacetylene Torch Similarity Verification of Thermal Insulations” might loosely apply to check oxidation barriers (though silicide coatings have their own test norms). X-ray or spark OES is used to verify composition to the ASTM/AMS limits listed above.

Creep Testing: For qualifying components, creep-rupture tests (ASTM E139) at representative stress/temperatures may be required by customers. Given C-103’s niche, many qualification test standards reference niobium alloys generically.

No single ISO international standard for C-103 exists (most niobium standards are national/military). However, suppliers often comply with ISO 9001/AS9100 quality systems and may offer material traceable to specified chemistry & process controls.

Availability and Cost

Niobium C-103 is a specialty material, available only from a few producers and distributors. Niobium itself is mainly mined in Brazil (CBMM) and Canada, but C-103 is an alloy requiring precise vacuum melting.

Typical production rates are low; lead times can be weeks to months, depending on order size. C-103 is priced at a premium (roughly hundreds of dollars per kg, varying with market Niobium/Hafnium prices and form). For example, bulk C-103 bar might cost on the order of $15–20 per pound (higher for small quantities or custom forms). Powder is often more expensive due to atomization. Because of limited stock, buyers should plan ahead; specialty metals inventory services (like Rotometals, AMG Superalloys, VanadiumCorp) often act as brokers.

There is no “commodity” market for C-103; it is sold by alloy and certification. However, its raw materials (niobium sponge, Hf cuttings) are readily available, and demand (primarily government/aerospace) is steady. Cost drivers: hafnium is much more expensive than niobium, so Hf content is the price lever. As Hf is a by-product of zirconium production, its availability is stable but costly. Supply risk is moderate – Niobium has a well-established supply chain, but C-103 itself can only be alloyed by qualified vendors.

Conclusion

In summary, C-103 niobium alloy stands out as a premier high-temperature material, offering an exceptional combination of strength, ductility, and thermal stability. Its unique Nb-Hf-Ti composition enables reliable performance in extreme environments, making it a preferred choice for aerospace propulsion systems, rocket nozzles, and advanced thermal structures.

As industries continue to push the limits of temperature, efficiency, and weight reduction, C-103 remains a proven and indispensable solution for next-generation high-performance applications.
